New LSR-1


Modular system design

Thermocouples

Platinum thermocouple for sample temperature measurement type S
Replacement thermocouple type S for sample measurements
For measurements from RT to 1600°C


Product number: 1500910

€456.00*
Nickel thermocouple for sample temperature measurement type K
Replacement thermocouple type k for sample measurements
For measurements from -180°C to 700°C


Product number: 1500911

€275.00*
Tungsten thermocouple for sample temperature measurement type C
Replacement thermocouple type C for sample measurements

For measurements from RT to 1100°C
Product number: LSR/TC/SAMPLE/C

€695.00*
Thermocouple for furnace temperature measurement type S
Replacement thermocouple type S for furnace/susceptor measurements
For measurements from RT to 1100°C
Product number: LSR/TC/S/SZ

€340.00*

Reference materials

NIST bismuth telluride reference sample with certificate
Reference sample for measurement of Seebeck coefficient and resistivity
For low temperature measurements (LSR LT)

Product number: LSR/REF/NIST

€1,250.00*
Konstantan reference sample with certificate
Reference sample for measurement of Seebeck coefficient and resistivity
For measurements at high temperatures (LSR 800 & 1100)
Product number: LSR/REF/KO

€250.00*

Electrodes

Upper electrode type K
Upper electrode type K
Material: Nickel
With contact wires

Product number: 05-400-004

€850.00*
Upper electrode type S
Upper electrode type S
Material: platinum
With contact wires

Product number: PT090

€1,750.00*
Lower electrode type S
Lower electrode type S
Material: platinum
With contact wires

Product number: LSR/LE/S

€1,750.00*
Lower electrode type K
Lower electrode type K
Material: nickel

With contact wires

Product number: LSR/LE/K

€850.00*
Lower electrode DISC Shape type K
Lower electrode DISC Shape type K
Material: platinum
With contact wires

Product number: LSR/LE/K/RDDISC

€1,250.00*
Lower electrode DISC Shape type S
Lower electrode DISC Shape type S
Material: platinum
With contact wires

Product number: LSR/LE/S/RDDISC

€1,250.00*

General informations

The LSR-1 System permits the characterization of metallic and semiconducting samples according to the well-known Van-der-Pauw (Resistivity) as well as static DC and slope Seebeck Coefficient measurement technique. It measures:

Electrical Resistivity and Seebeck Coefficient.

The compact desktop setup offers fully integrated sample holders for various temperature requirements. Optional low temperature (LN2) attachments and a heated version up to 200°C as well as a vacuum tight measurement chamber in combination with a selection of gas dosing systems ensures that all fields of application can be covered.

The comprehensive Windows based softwareprovides an easy to use user interface, includingwizards for setting up a measurement profile
and an integrated measurement data evaluation.

Measured parameters

• Resistivity / Conductivity (Ohm*cm / S/cm)
• Seebeck Coefficient (µV/K)

Key Features

• Modular system design. Can be upgraded with gas dosing system, illumination and Cryo-option

• Vacuum tight measurement chamber for measurements under defined atmospheres.

• Easy to use and exchangeable sample holders, with integrated primary and secondary heater.

• Integrated state of the art measurement electronics provides most accurate results for challenging samples.

• The unit can be used for simultaneous measurement of both Seebeck Coefficient and Electric Resistance (Resistivity).

• The sample holder uses a special contact mechanism, permitting measurement of high reproducibility.

• V-I plot measurement can be made to judge if the sensor is in good contact with the sample.

• Measurement is controlled by a computer, permitting automatic measurement with selected temperature difference a specified furnace temperature.

• Measured raw data is stored on disc.

• System comes with Constantan Reference incl. tables and certificate



Sample mounting board




You are interested in a LSR 1?


You need more information?


Contact our application experts!


Specifications

Thermoelectric power generation is a method of direct electric power generation from heat, based on the thermoelectric effect which was discovered by J. T. Seebeck, a German physicist in 1821. In the face of recent global warming, caused by carbon dioxide and depletion of fossil fuels, thermoelectric conversion devices are attracting attention because of its effective utilization of waste heat energies. LINSEIS has developed the LSR-1 system for a reliable, easy and fast characterization of thermoelectric materials at room temperature or in the temperature range from -196°C up to +200°C.

Modell

LSR 1

Temperature range:

Basic unit: Room temperature to 200°C (hot side temperature)

Cryo option: -160°C to 200°C (cold side and hot side temp.)

Heating rate:

0.01 up to 100 K/min

Temperature precision:

+/-1.5K + or -0.25°%

Sample size:

Seebeck
L: 8 mm to 25 mm; W: 2 mm to 25 mm; T: thin film to 2 mm
Resistivity
L: 18 mm to 25 mm; W: 18 mm to 25 mm; T: thin film to 2 mm

Measuring Range / Method:


Sample Holder:

Integrated PCB Board with Primary and Secondary Heater

Seebeck coefficient
Static dc method:

Seebeck Coeffecient measurement range: 0 to 2.5 mV/K
Temperature measuring range: +-200°C
Seebeck Voltage measurement: range +-8 mV

Electric Resistivity
Four-terminal method:

10-4 up to 107 (Ωcm)

Resolution:


Thermovoltage:

0.5 nV/K (nV = 10-9 V)

Electric Resistivity:

10 nOhm (nOhm = 10-9 Ohm)

Thermocouples:

0.01°C

Accurancy:


Seebeck coefficient:

+/-6% (Semiconductor*) +/-4% (Metal*)

Electric Resistivity:

+/-9% (Semiconductor*) +/-4% (Metal*)

Repeatability:

Seebeck coefficient:

+/-3,5%*

Electric Resistivity:

+/-2%*

Atmosphere:

Inert, reducing, oxidising, vacuum

Low pressure helium gas or N2, recommended

Power requirement:

230V / 110V 50Hz / 60 Hz

Vacuum Pump:

optional

Software


The all new Platinum Software greatly enhances your workflow as the intuitive data handling only requires minimum parameter input.
AutoEval offers a valuable guidance for the user when evaluating standard processes such as glass transitions or melting points. Thermal library product identification tool, provides a database with 600 polymers permitting an automatic identification tool for your tested polymer. Instrument control and/or surveillance through mobile devices gives you control wherever you are.
  • Software packages are compatible with latest Windows operating system
  • Set up menu entries
  • All specific measuring parameters (User, Lab, Sample, Company, etc.)
  • Optional password and user levels
  • Undo and Redo function for all steps
  • Infinite heating, cooling or dwell time segments
  • Multiple language versions such as English, Germany, French, Spanish, Chinese, Japanese, Russian, etc. (user selectable)
  • Evaluation software features a number of functions enabling a complete evaluation of all types of data
  • Multiple smoothing models
  • Complete evaluation history (all steps can be undone)
  • Evaluation and data acquisition can be performed simultaneously
  • Data can be corrected using zero and calibration correction
  • Data evaluation includes: Peak separation software Signal correction and smoothing, first and second derivative, curve arithmetic, data peak evaluation, glass point evaluation, slope correction. Zoom / individual segment display, multiple curve overlay, annotation and drawing tools, copy to clip board function, multiple export features for graphic and data export, reference based correction

Applications





Seebeck voltage/temperature gradient (blue) measured while sweeping gradient heater power together with the linear regression (orange).
Seebeck coefficient is determined by the slope of the linear regression.

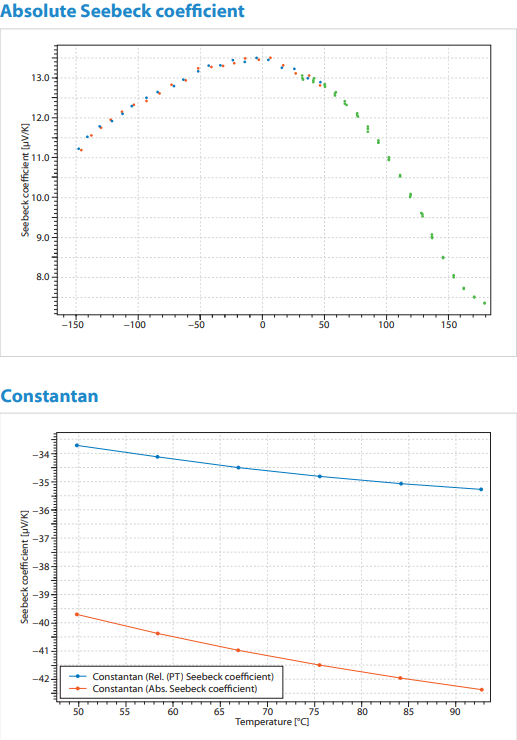

Seebeck coefficient measurement example of constant.




By this method the Seebeck coefficient is measured relative to Alumel. In order to calculate the absolute Seebeck coefficient Platinum is measured relative to the Alumel wire over temperature.








The table for the absolute Seebeck coefficient deposited in the HCS software database and is used by the software for the automated calculation of absolute Seebeck coefficient and for the Seebeck coefficient relative to platinum (as it is often used as reference in the literature).
